Product Introduction
The Hydraulic Open-Box Sand Making Machine is an advanced fine crushing equipment developed by our company based on the craftsmanship of the famous “Third Generation Sand Making Machine”.
Its defining feature is the unique automatic hydraulic cap-opening system. With a “one-key” hydraulic operation, the box can be opened effortlessly, providing immediate access for maintaining equipment and replacing hammers, grate bars, and liners. This solves the traditional difficulty of maintaining fine crushers.
The machine features a simple structure, convenient operation, and high efficiency. It can crush materials to a fine granularity (≤5mm), which can be regulated by adjusting the gap of the grate bars. It can also be equipped with a diesel engine for mobile/flowing operations in areas without electricity.
Working Principle
The material enters the crushing chamber and is impacted by the high-speed rotating hammers. The stone collides with the impact liners and other materials, breaking down into smaller particles.
Unlike standard impactors, this machine has a grate section at the bottom. Material is continuously crushed and ground until it is small enough (usually ≤5mm) to pass through the gaps in the grate bars. The hydraulic system allows the entire upper body to hinge open, exposing the rotor and grate for easy service.
Overview of Advantages
- Hydraulic “One-Key” Opening:
The hydraulic system allows the rear cover to be opened automatically with a single button. This drastically reduces the labor and time required to replace hammer heads and grate bars compared to traditional manual opening machines. - Excellent Fine Output (≤5mm):
Designed specifically for sand making and fine crushing, ensuring a high percentage of finished sand product. - Adjustable Discharge Size:
The discharge particle size can be flexibly adjusted by changing the gap width of the grate bars to meet different project requirements. - Versatile & Mobile Capable:
Can be powered by an electric motor or a diesel engine, making it perfect for remote sites or mobile operations. - High Efficiency for Medium-Hard Materials:
Perform exceptionally well on limestone, cement clinker, and siliceous sand.

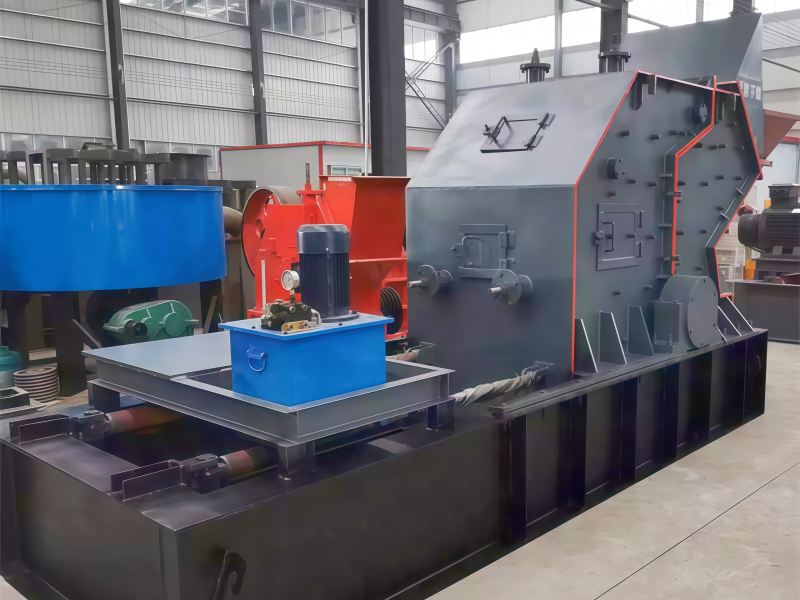

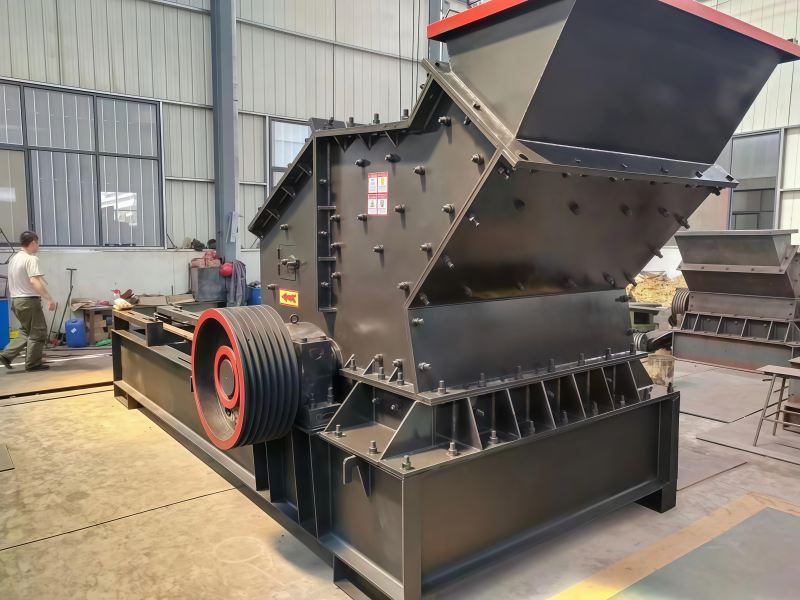

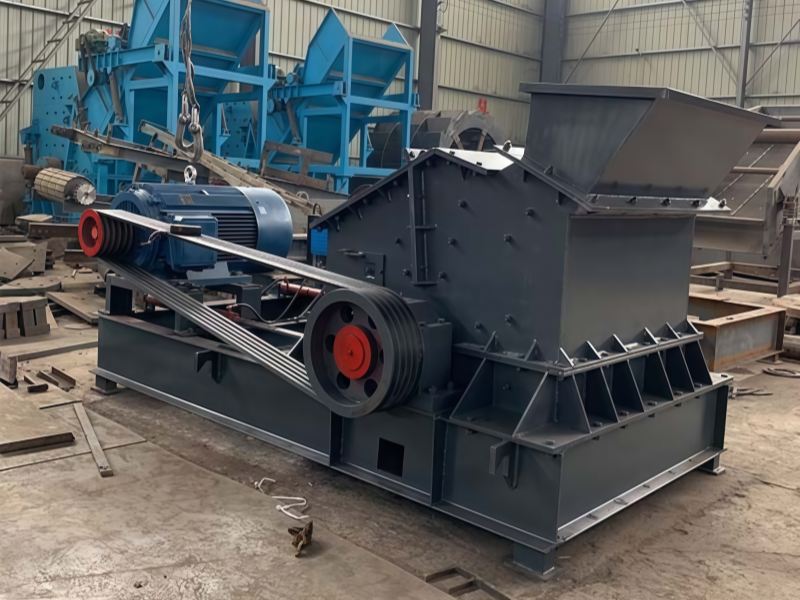

Product Photos
Technical Parameters
| Model | Feed Opening Size (mm) | Max Feeding Size (mm) | Output Size (mm) | Adjustment Width of Discharge Slot (mm) | Capacity (t/h) | Power (kw) | ||
|---|---|---|---|---|---|---|---|---|
| Clinker | Limestone | Siliceous Sand | ||||||
| 800 × 400 | 400 × 230 | 120 | ≤5 | 5-20 | 20-30 | 30-45 | 35-45 | 22-37 |
| 800 × 600 | 600 × 230 | 180 | ≤5 | 5-20 | 35-40 | 40-55 | 45-55 | 37-45 |
| 800 × 800 | 800 × 230 | 180 | ≤5 | 5-20 | 35-45 | 60-65 | 55-65 | 45-55 |
| 1010 × 1010 | 1000 × 330 | 180 | ≤5 | 5-20 | 45-55 | 60-75 | 65-75 | 55-75 |
| 1200 × 1000 | 1200 × 330 | 180 | ≤5 | 5-20 | 80-110 | 80-100 | 80-100 | 90-110 |
| 1200 × 1200 | 1200 × 420 | 180 | ≤5 | 5-20 | 100-110 | 90-100 | 90-120 | 110-132 |
| 1400 × 1400 | 1400 × 420 | 190 | ≤5 | 5-20 | 100-150 | 100-150 | 120-150 | 160 |
| 1600 × 1600 | 1600 × 520 | 190 | ≤5 | 5-20 | 170-210 | 190-250 | 190-250 | 250 |
| 1800 × 1800 | 1800 × 520 | 190 | ≤5 | 5-20 | 250-270 | 280-310 | 280-310 | 315 |
