PC Hammer Crusher

Product Introduction

A hammer crusher is a device that crushes materials by impact. It comes in two types: single-rotor (single-shaft) and dual-rotor (dual-shaft) models. The single-rotor type is further divided into reversible and irreversible types.

It is primarily used for crushing medium and brittle materials in industries such as cement, chemicals, electric power, and metallurgy.

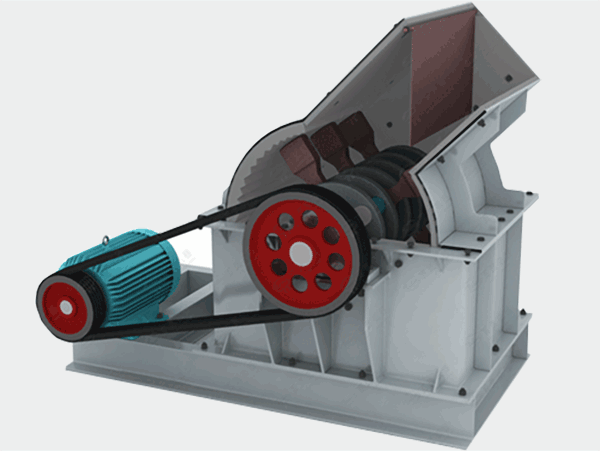

Working Principle

The PC Hammer Crusher operates on the principle of high-speed impact. Material is fed into the crushing chamber and is immediately struck by the rotating hammer heads which are attached to a high-speed rotor. The material is shattered by this initial impact and is then thrown against a liner plate (breaker plate) inside the housing, causing further reduction. The material remains in the chamber, continuously struck by the hammers, until it is fine enough to pass through the grate bar openings at the bottom.

Overview of Advantages

1. Wear-resistant hammer head, long service life
   The hammer crusher’s hammer head is cast using a new process, free of internal cracks, resistant to wear, and boasts high compressive strength for a long service life.
2. Adjustable particle size to meet diverse needs
   The grate gap can be adjusted to suit individual needs, varying the output particle size to meet the diverse demands of different users.
3. Sealed design, reducing dust
   The hammer crusher’s sealed housing eliminates dust pollution and dust leakage in the crushing workshop.
4. Simple operation and easy maintenance
   The hammer crusher’s ring-type hammer head is easy to install. To replace, simply open the cover and flip the hammer head over. This makes operation simple and maintenance easy, reducing maintenance workload.

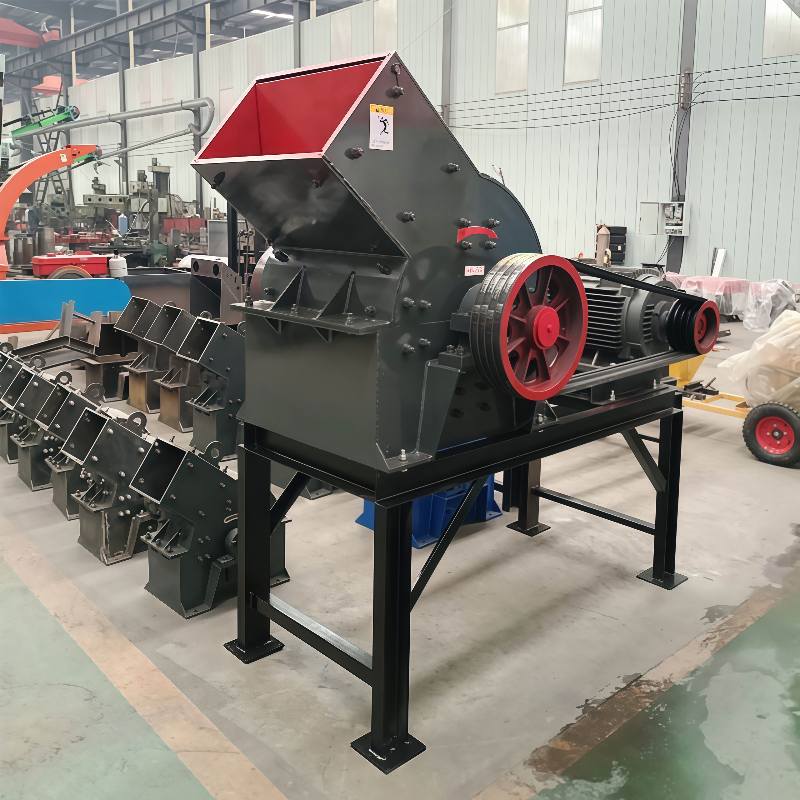

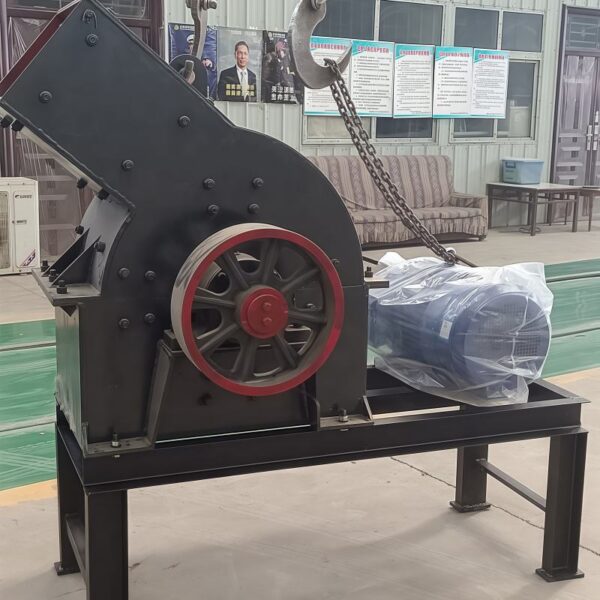

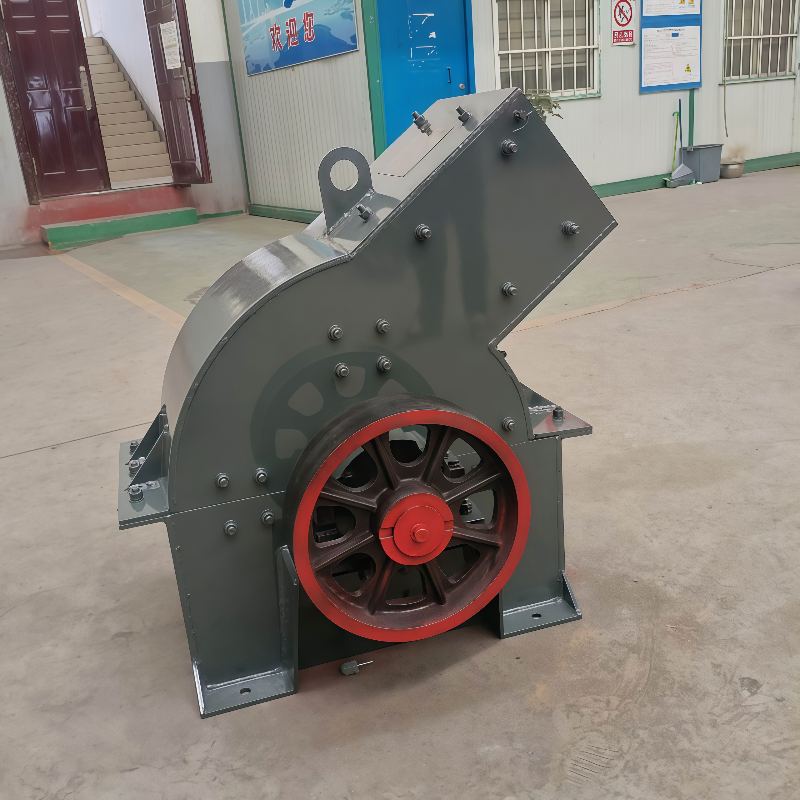

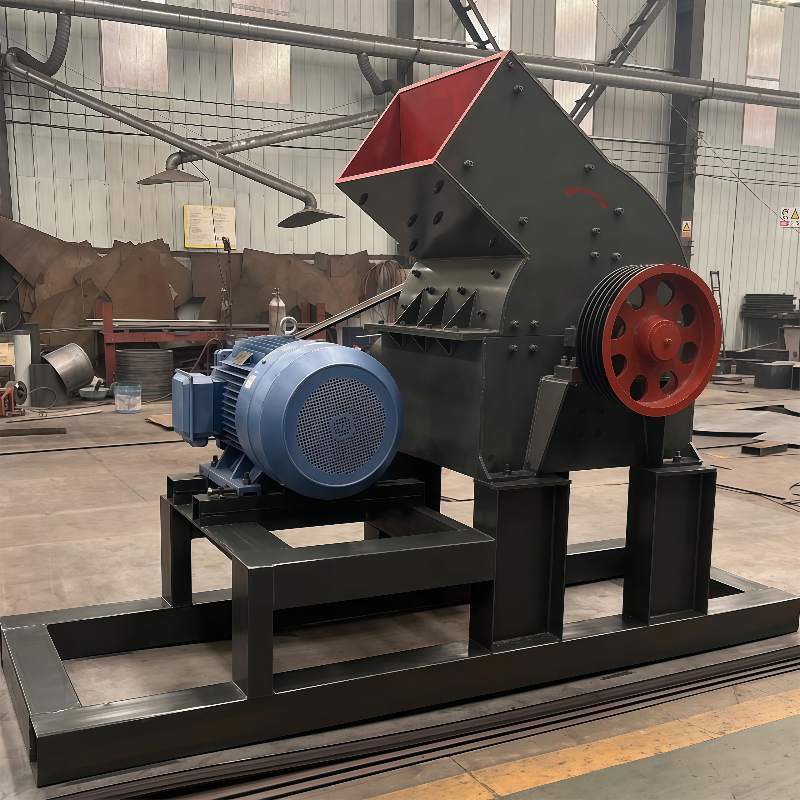

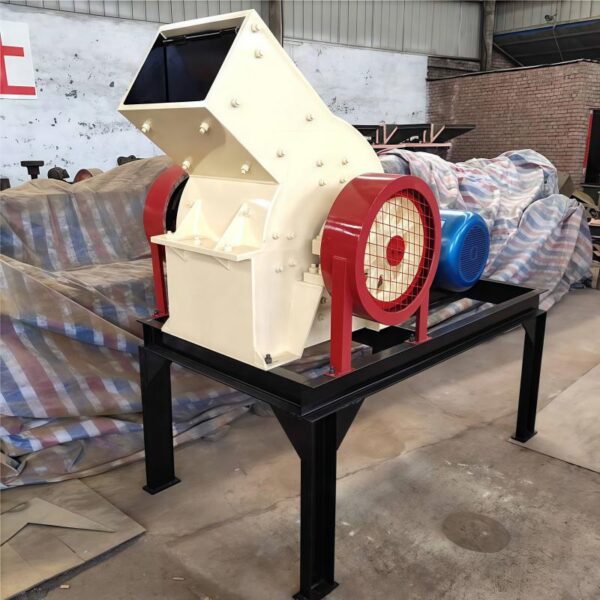

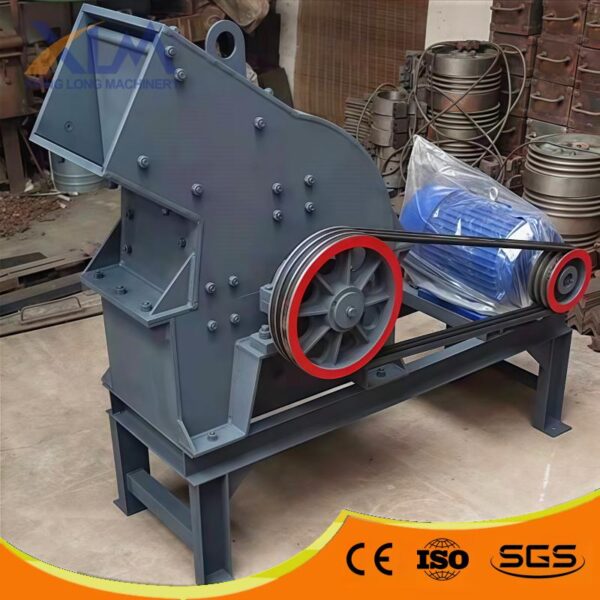

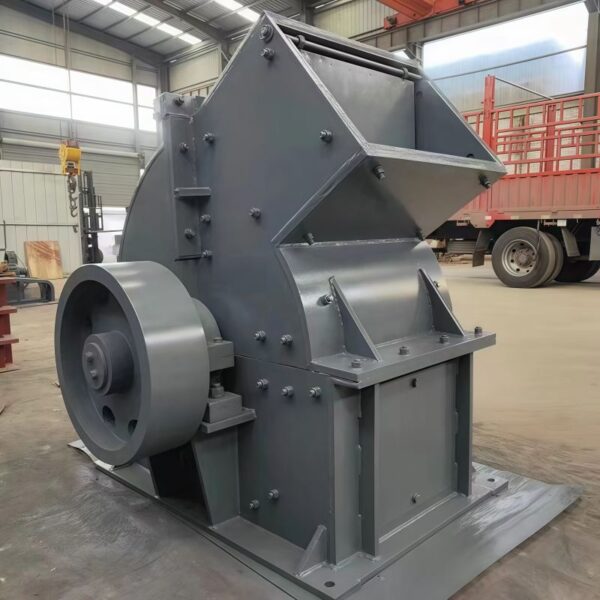

Product photos

Technical Parameters
